Tech Specs

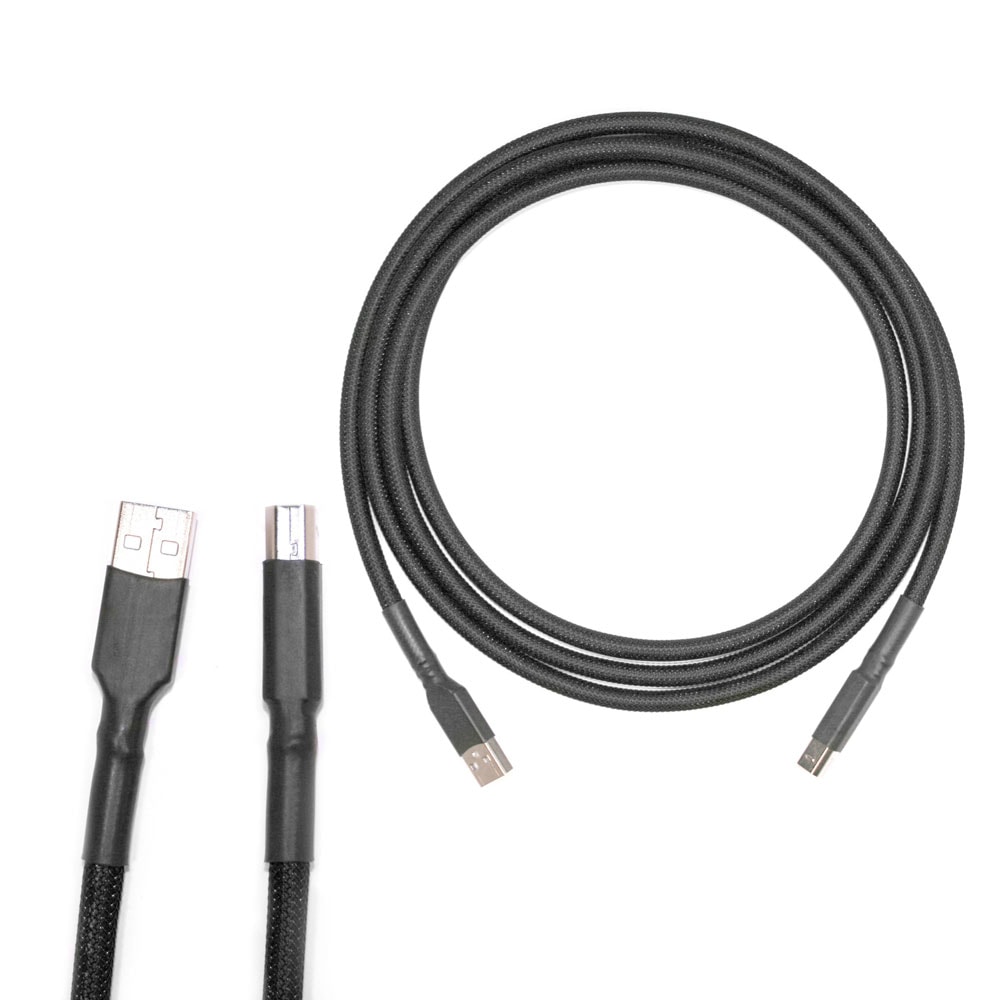

USB Cable
At Audioengine, we believe you shouldn't have to drain your bank account to enjoy a high-end listening experience. That's why we partner with Link® to produce easy to use, high-quality, and afford products, hand-assembled right here in the US.
Technical Specifications
General specifications
Brand
Link®
Shield type
Served 98/0.12A (98×#37)
Capacitance at 1kHz, 20°C
Between Twisted Pair: 99 pF/m (30 pF/Ft)
Between Shield and one of Twisted Pair: 182 pF/m (56 pF/Ft)
Between Shield and Synchro Conductor: 180 pF/m (55 pF/Ft)
Between One of Twisted Pair and Synchro Conductor: 91 pF/m (28 pF/Ft)
Pitch of Twisted Pair
Approx. 30mm (1.18″)
Voltage Breakdown
Must withstand at DC 500V/15sec.
Insulation Material
Flexible PVC
Insulation Resistance
10000 MΩ × m Min.
Tensile Strength
480N
