The HXL will work with Android or any device that can operate as a USB-C host, can provide enough power via USB-C, and includes generic drivers for standard USB-C audio playback.  A device with Android 6.0 or later should have both USB-C host mode and native plug-and-play functionality for USB-C audio, so you could connect the two together using the included USB-C cable.

The HXL is essentially a very high-end external sound card. Its components and implementation of those components make it more capable than what might be built into a computer, not to mention the benefit of moving those sensitive components outside and away from the potentially noisy interior of your computer. All of this means the signal your speakers or wired headphones receive will be clearer, with a lower noise-floor, and with a more pronounced dynamic range over your internal sound card.

To get things up and running only takes 3 simple steps. You would just need to first connect the included USB-C cable from your device’s USB-C port to the HXL; then you’ll need to connect the 3.5mm/4.4mm output of your HXL to headphones, or any audio input of your powered speakers, stereo system, etc.

Next, if using a Mac, you will need to go to System Preferences/Sound, and select “Audioengine HXL”; if you’re using a PC, no setting changes are needed as the computer will automatically find the USB-C driver. Finally, you’ll just need to adjust the volume on your device and HXL to medium and you’re ready to play music from iTunes or your favorite media player and that’s it! Setup really is that easy!

The HXL includes a headphone amplifier based on the LME49726 delivers 32-bit precision, high dynamic range and ultra low distortion. This headphone amp is able to provide low-impedance, high-fidelity audio to a wide range of wired headphones.

DAC type

USB-C

Input

USB-C audio

DAC Chipset

SA9312 + Dual CS43131

USB transfer mode

Asynchronous dual clock

USB device class

UAC 2.0

Input bit depth

32 bit

Input sample rate

PCM: Up to 32-bit / 384kHz

DSD: DSD64 / DSD128 (DoP), DSD256 (Native)

Output

3.5mm and Balanced 4.4mm

Full-scale output level

2.06Vrms @ 600Ω (3.5mm)

4.09Vrms @ BAL

Output impedance

<0.5Ω

Recommended headphone impedance range

10Ω – 600Ω

Headphone amplifier

LME49726

Frequency response

20Hz – 40kHz ±0.1dB

SNR

132dB (BAL), 125dB (3.5mm)

THD+N

0.0002% (112dB)

Crosstalk

-129dB (BAL), -96dB (3.5mm)

Power requirement

Standby: ~75mA
Active: ~120mA (Pink noise @ 50%, 32-bit 384kHz)

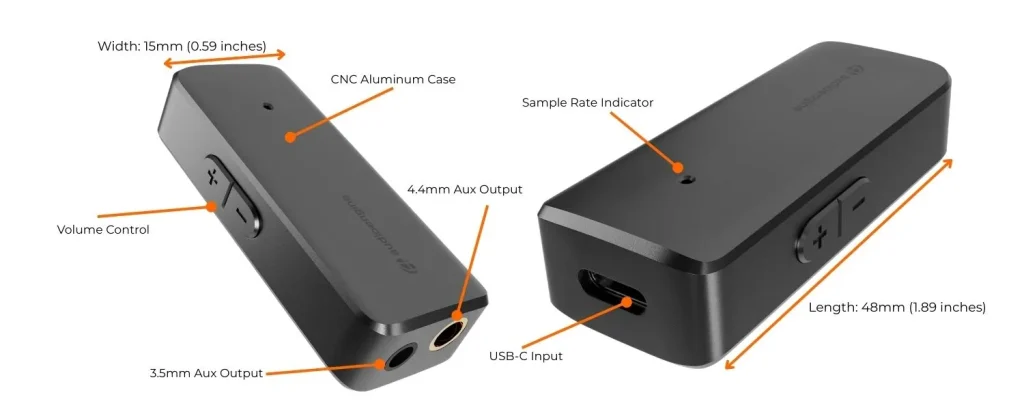

Product dimensions

48 × 15 × 10 mm

Shipping weight

1.0lbs (0.5kg)

Environmental

Operating Temperature: 32 to 95 degrees F

Non-operating Temp: -4 to 113 degrees F

Relative Humidity: 5% to 95% non-condensing

Included accessories

USB-C to Lightning adapter and USB-C to USB-C cable

Setup guide

Other Components:

External low-noise crystal oscillator
Low jitter PLL internal clock
Low noise LDO regulator
Asynchronous mode operation

LED Playback Indicators

• Red: Power / PCM 48kHz
• Green: PCM 88.2 – 96kHz
• Yellow: PCM 176 – 384kHz
• Blue: DSD64 / DSD128 / DSD256

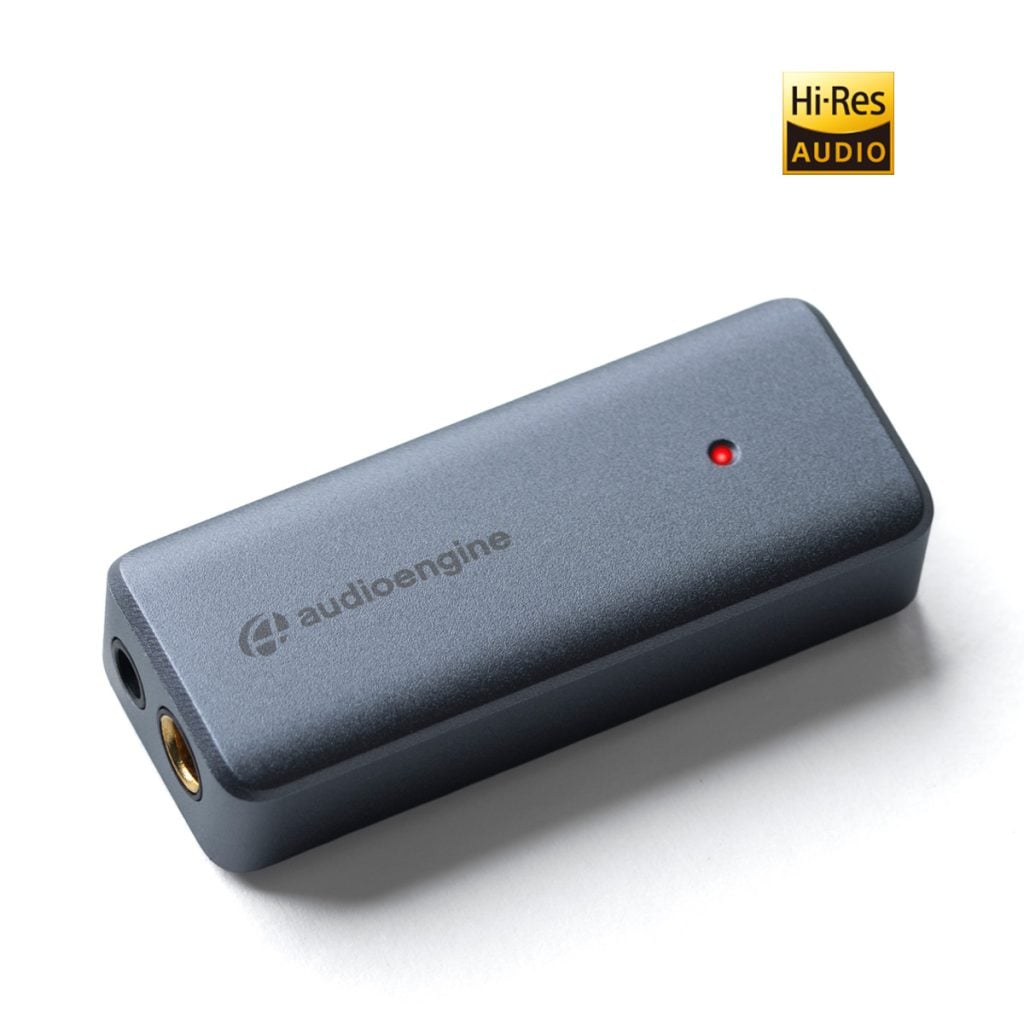

Pocket-Sized Power

The compact design of the HXL makes it easy to take anywhere while delivering serious performance. Built from precision-machined aluminum, it’s rugged enough for travel and clean enough for your desktop, proving that portable gear doesn’t have to compromise on quality.

Dual Headphone Outputs

The HXL includes both 3.5mm and 4.4mm balanced outputs, giving you flexibility for everything from sensitive in-ear monitors to demanding studio headphones. Balanced output delivers more headroom, tighter bass, and a quieter noise floor for a true hi-fi listening experience.

No Batteries, No Charging

Forget about managing extra power cords or waiting for a charge. The HXL draws power directly from your phone, tablet, or computer through a single USB-C connection, keeping your setup clean and ready to play at a moment’s notice.

Upgrade Any Audio Source

Bypassing the built-in sound card of your computer or mobile device, the HXL acts as a high-quality DAC and headphone amplifier in one. Use it to power headphones or connect directly to powered speakers or a Home Music System for a clear, detailed upgrade to any setup.

Simple, Hassle-Free Operation

No drivers. No apps. No setup headaches. Just plug the HXL into your device and start listening. LED indicators clearly display playback resolution, and the onboard 60-step volume control gives you precision without adding bulk or complexity.

Step 1: Connect the HXL to your phone, tablet or computer’s USB-C port using the included cables. (USB-C to Lightning adapter or USB-C to USB-C cable for iOS devices, MacOS, Android and Windows).

For PC, the HXL should be recognized automatically.

For Mac, under System Preferences/Sound, select “Audioengine HXL” as the sound output.

Step 2: Connect the 3.5mm/4.4mm output of your HXL to wired headphones, or any audio input of your powered speakers, stereo system, etc.

Note that the audio cables to connect your HXL to a stereo system are not included with the HXL.

Step 3: Adjust the volume on your device and HXL via the side panel control to a medium level and start playing music.

For the full setup guide, download the attached PDF:
HXL Quickstart Guide

1. Verify that one of the included cables is completely plugged into the HXL and your source device.
2. Also, verify that the 3.5mm/4.4mm headphone outputs are firmly plugged in.
3. Try disconnecting and reconnecting both the USB-C and 3.5mm/4.4mm cable.
4. You will see an LED light confirming the HXL is getting power and is connected to an output.
5. Check the volume level on your source.
6. If connected to a computer, verify that the HXL is recognized and the active output device.
7. Try restarting your computer.

If none of the above helps resolve your issue, please contact our Support Team for additional assistance.

Please check that the volume control on your phone/tablet/computer is up and at a good level; 75% should be a good level. Also try adjusting the volume on the HXL as well.

The HXL uses the SA9312 + Dual CS43131 DAC chipset

If you do not have headphones connected to the HXL, the LED light will turn off after cycling through.  This is an intended feature to help save device power when headphones are unplugged.

HXL can easily drive wired headphones with impedances of 10 ohms or higher.

The HXL only needs 120mA USB power to work, which most all modern source devices are capable of.
